SMB Female Connector for RG174/316 Cable

FOB Reference Price:Get Latest Price
  • >=100 Pieces
    $0.30
Lead Time:
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Futai
Model Number:
SMB-C-KY1.5-125
Application:
RF
Type:
Smb
Gender:
Female
Product name:
smb female cable
Material:
Brass
Sample:
welcome to ask sample for testing
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
100pcs/bag or according to customer's requirements.
Port
Foshan
Lead Time :
Quantity(Pieces) 1 - 1000 >1000
Est. Time(days) 7 To be negotiated



SMB Female Connector for RG174/316 Cable-RF Coaxial Connector

Specification:



Model

SMB-C-KY1.5-125

Major Technical Characteristics

Type

SMB-C-KY1.5-125

Impedance

50Ω

Frequency Range

DC~4GHz

Center conductor retention force

≥0.28 N

Insertion Loss

0.30dB/1.5GHz

Disengagement force

8-63N

Voltage Standing Wave Ratio

Straight       ≤1.35/3GHz

Right angle     ≤1.45/1GHz

Durability(mating)

≥500(cycles)

Cable

RG174,RG316

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber

















Pictures


Other Picture


About Us

     Futai HongKong Co., Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas. Our subsidiary –Jinrei Communication co., ltd is located in are three catagories:, RF Connector , Cable Assembly and Antenna.

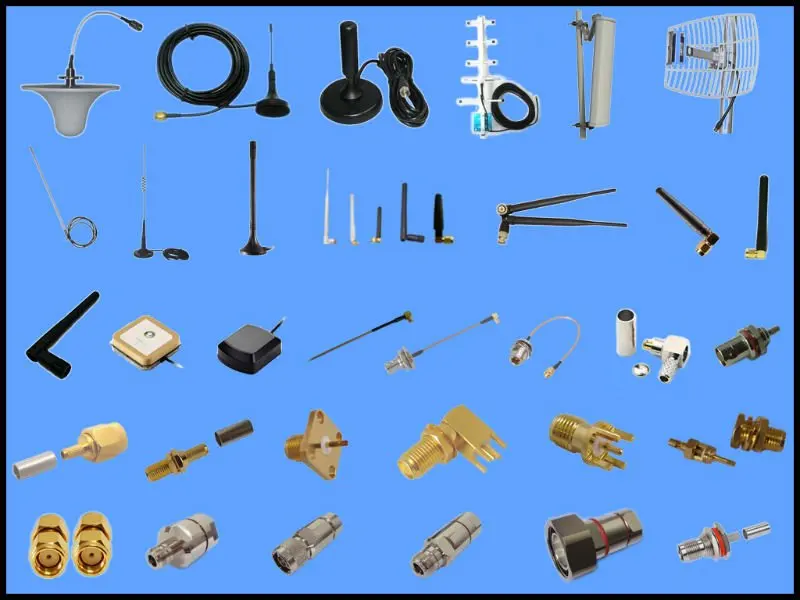

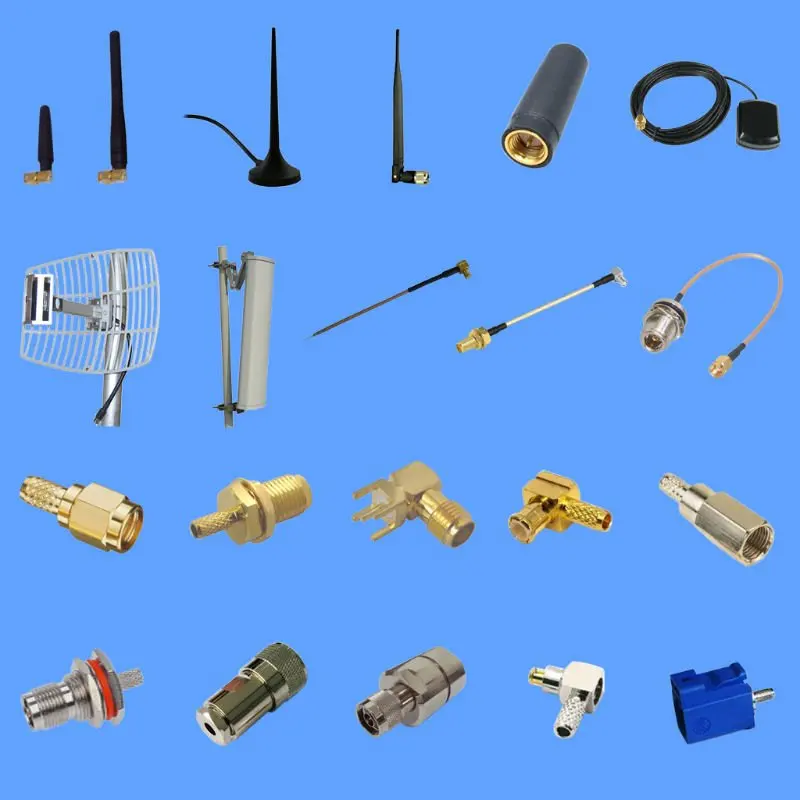

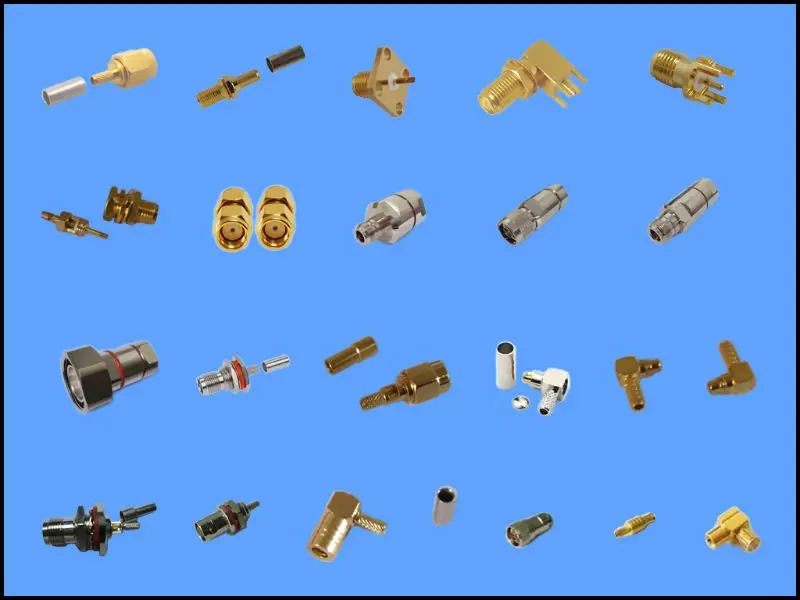

         Connectors are including RF Connectors (with SMA,MMCX, MCX, TNC, F, BNC ,N, and so on).
         Cable assemblies are includGaoqiao, Danyang City ,Jiangsu.

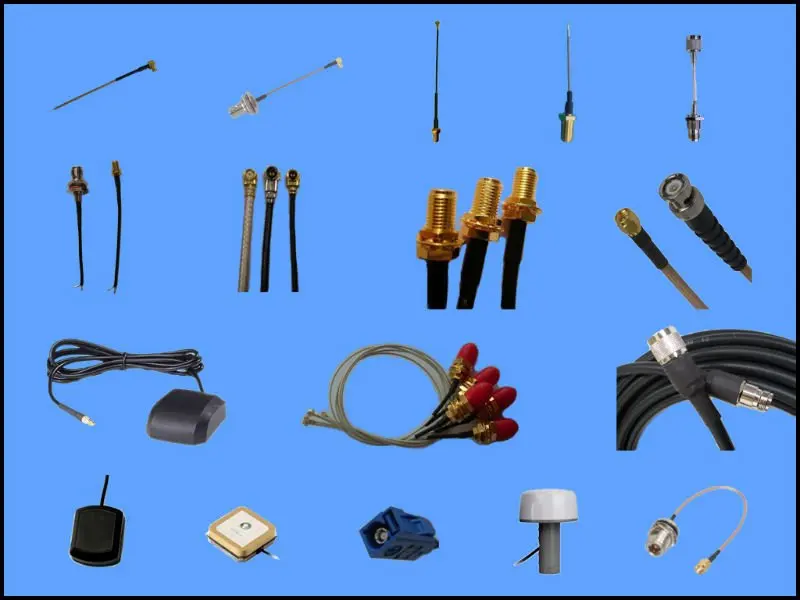

         Our major products ing interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).

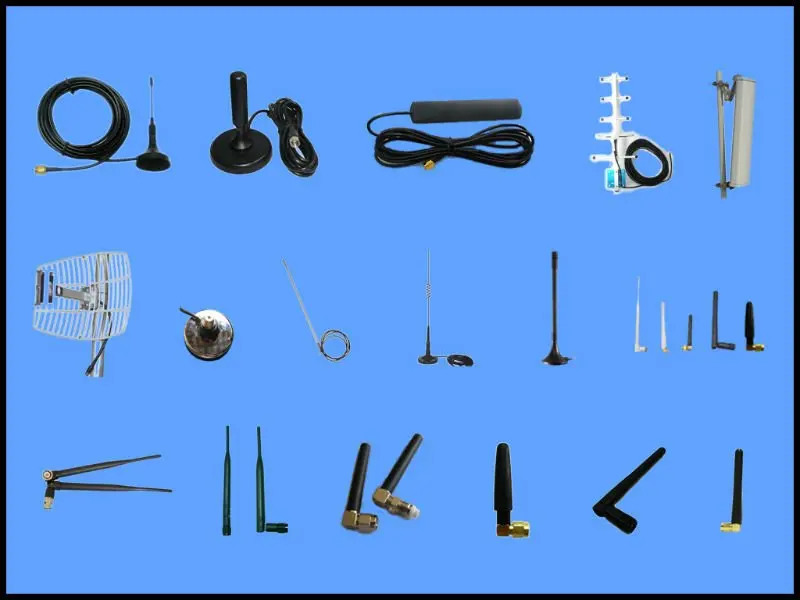

         Antenna are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.

     The corporation has passsed ISO9001-2000 certification and ISO14001 in 2004.All of our products and raw materials are in line with the EU ROHS certification.
Our Professional R&D staff develop and research latest designs to meet global market.
Company purpose: Technological Innovation, Pragmatism, Customer Satisfaction.
Quality principal: Continuous Improvement, Become the Best.
We are looking forward to establishing business relations with clients from all over the world.

Packing & Delivery

photobank (1).jpg

Exhibition

photobank (2).jpg

FAQ

Q1:Where can i get the product and price information?

A1:You can send us inquiry e-mail or directly contact us,when we receive your e-mail well contact you.



Q2:How long Can i get the sample?

A2:That is depends on your products, within 3-7 days is required generally.



Q3:How to ship the goods?

A3:We ship the products by courier company or if you have DHL,UPS,FedEx account,we can use it to ship sample.



Q4:What shall we do if we do not have drawings?

A4:Please send your sample to our factory,then we can copy or provide you better solutions, please send us pictures or drafts with dimensions(Length,Hight,Width), CAD or 3D file will be made for you if placed order.



Q5:Will my drawings be safe after sending to you?

A5:Yes, we will keep them well and not release to the third party without your permission.
