High performance RF coaxial PCB BNC male connector for RG174 Cable

FOB Reference Price:Get Latest Price
100 Piece/Pieces BNC male connector for RG174 Cable (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
FUTAI
Model Number:
FT-Connector-178B
Application:
RF
Type:
BNC
Gender:
Male
Product name:
BNC female connector
Supply Ability
Supply Ability:
8000 Piece/Pieces per Week BNC male connector for RG174 Cable
Packaging & Delivery
Packaging Details
100 pcs / bag
Port
Foshan
Lead Time :
3-5days when get the payment

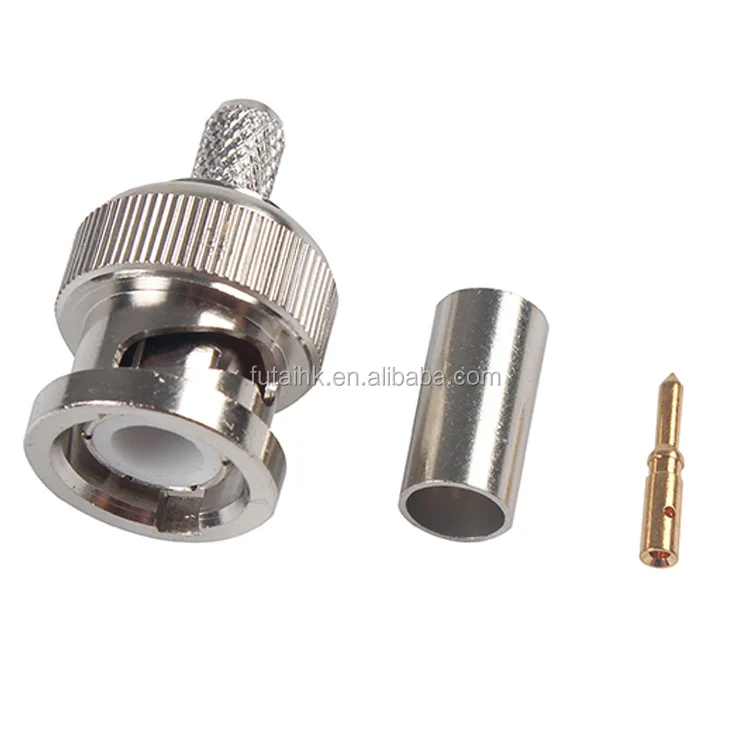

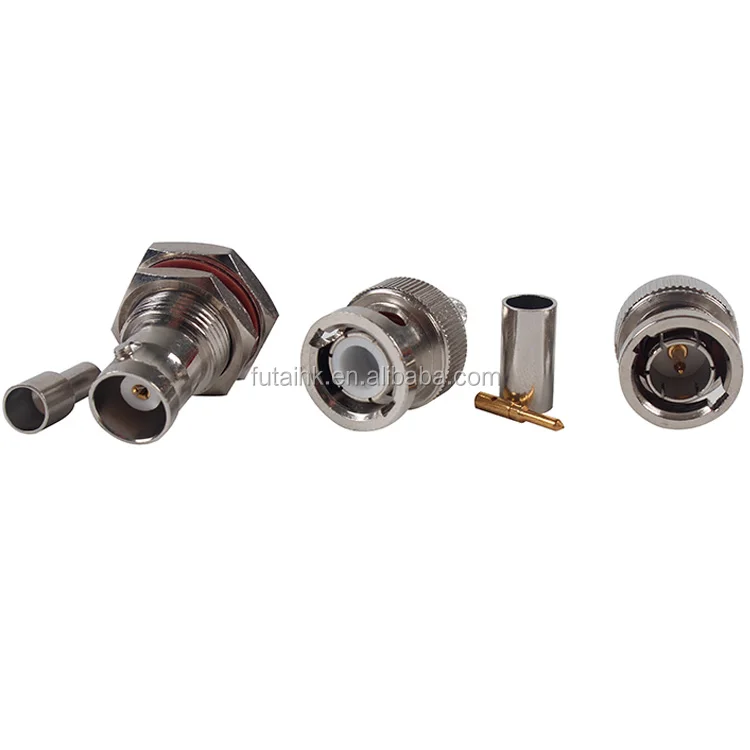

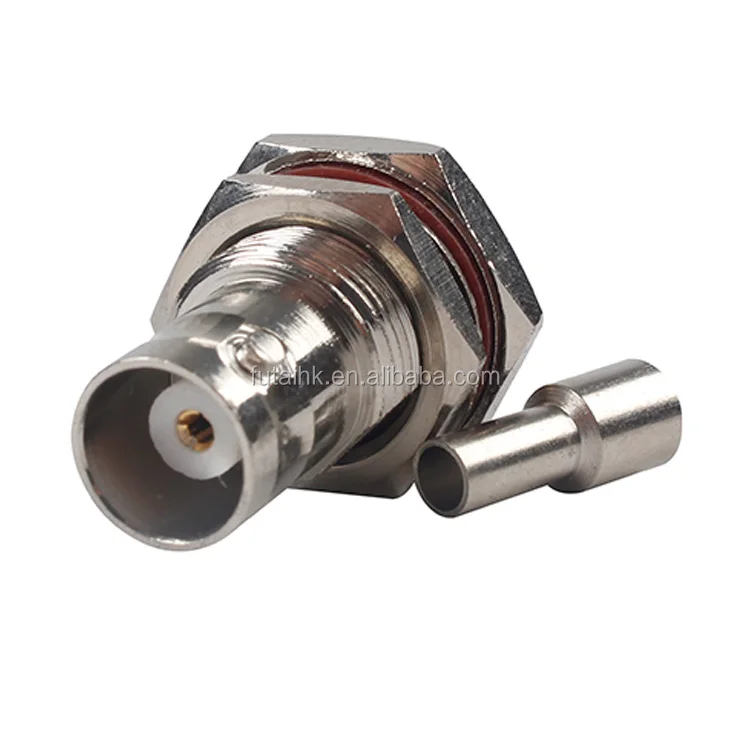

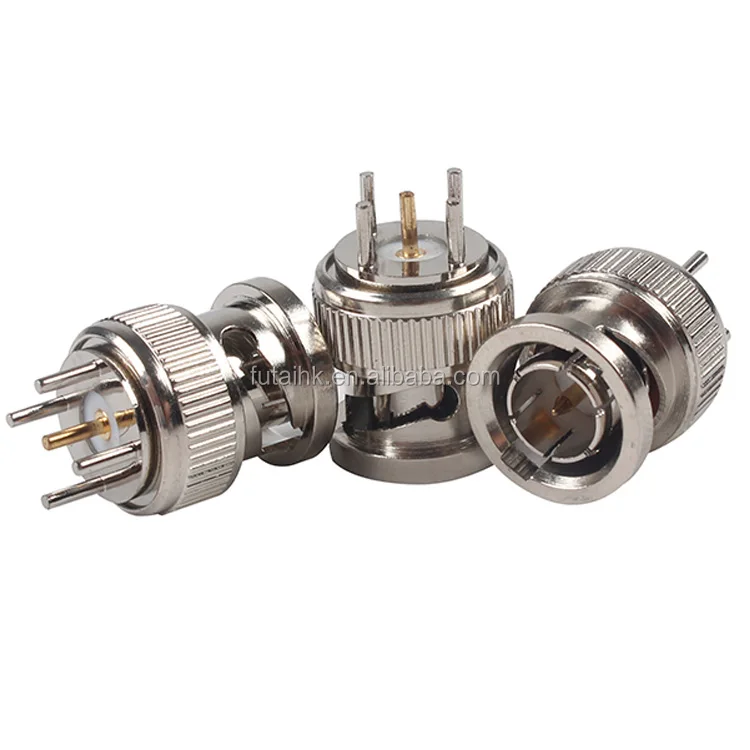

The BNC connectors are for low power,quick connect/disconnect applications using a bayonet type coupling mechanism and can be interchangeable with the same-type connectors of abroad.They are widely used connect of the RF coaxial-cables in electronic equipment and instuments.Characteristic impedance 50Ω,75Ω.



Model

FT-Connector-178B

Major Technical Characteristics

Type

BNC-C-JY3-178B

Impedance

50Ω

Frequency Range

DC~4GHz

Center conductor retention force

≥0.57 N

Insertion Loss

≤0.20dB/3GHz

Insulation resistance

≥5000MΩ

Voltage Standing Wave Ratio

Straight       ≤1.22/3GHz

Right angle     ≤1.30/3GHz

Durability(mating)

≥500(cycles)

Cable

RG174/RG316

Material & Plating

Body

Brass

Nickle plated

Pin contact

Brass

Gold plated

Resilient contact

Tin bronze

Nickel plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber
