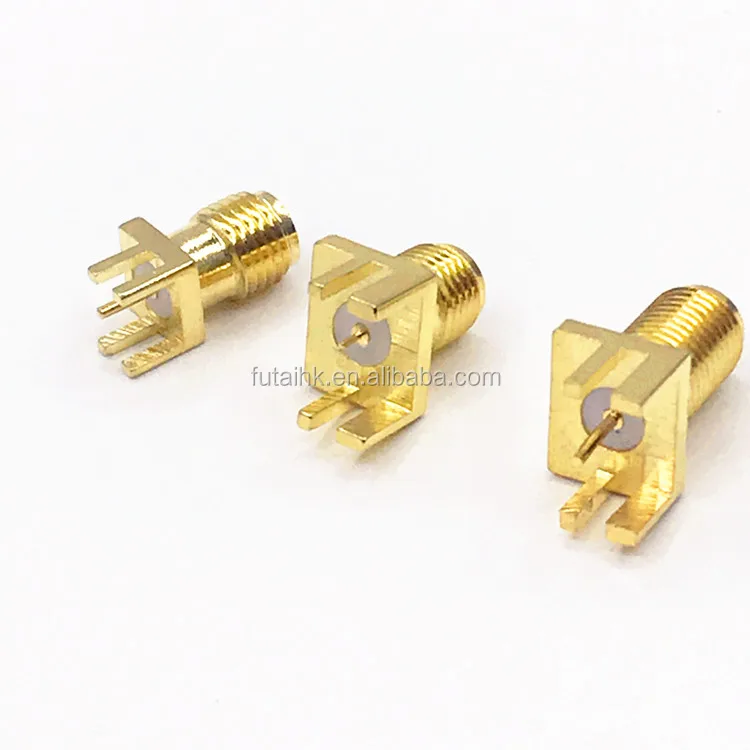

SMA Edge Mount PCB CONNECTOR

FOB Reference Price:Get Latest Price
$0.20 - $0.30 / Piece | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Futai
Model Number:
FT-SMA-KE-10025
Application:
RF
Type:
Sma
Gender:
Female
connector type:
sma
gender:
female
Material:
Brass
Plating:
Gold
Sample:
Welcome you to ask sample for testing
Supply Ability
Supply Ability:
1000000 Piece/Pieces per Month SMA CONNECTOR
Packaging & Delivery
Packaging Details
100pcs/bag
Port
Foshan

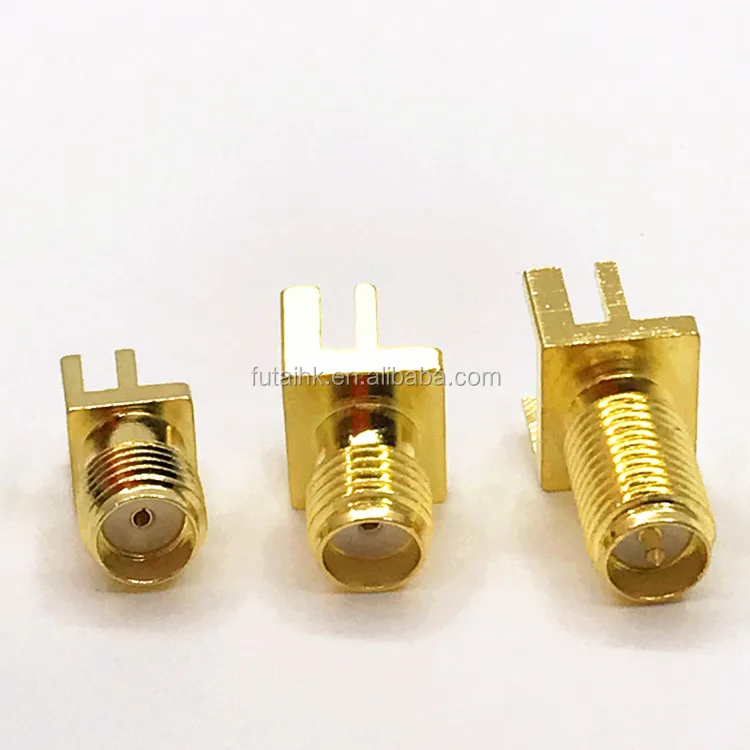

SMA Female RF Coaxial Connector for PCB Mount-RF Coaxial Connector



Specification:

Model

FT-Connector-10025

Major Technical Characteristics

Type

FT-SMA-KE-10025

Impedance

50Ω

Frequency Range

DC~12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force

≥0.28 N

Insertion Loss

≤0.15dB/6GHz

Voltage Standing Wave Ratio

Straight  Flexible Cable  ≤1.10+0.02f

Semi-Rigid Cable≤1.07+0.018f

Right angle Flexible Cable  ≤1.20+0.03f

          Semi-Rigid Cable≤1.17+0.02f

Durability(mating)

≥500(cycles)

Cable

PCB

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber





 Our Company Other Products:
Futai HK Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.
Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
