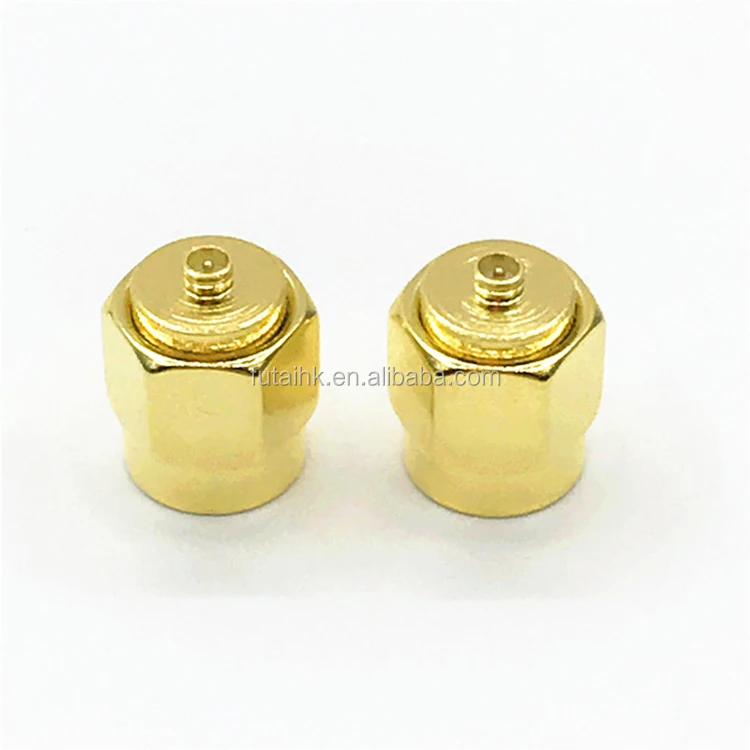

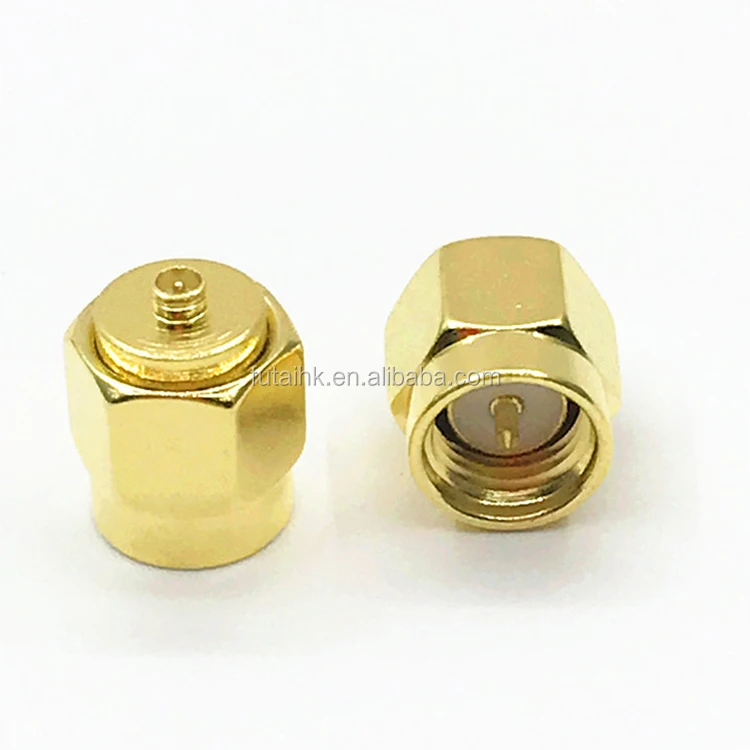

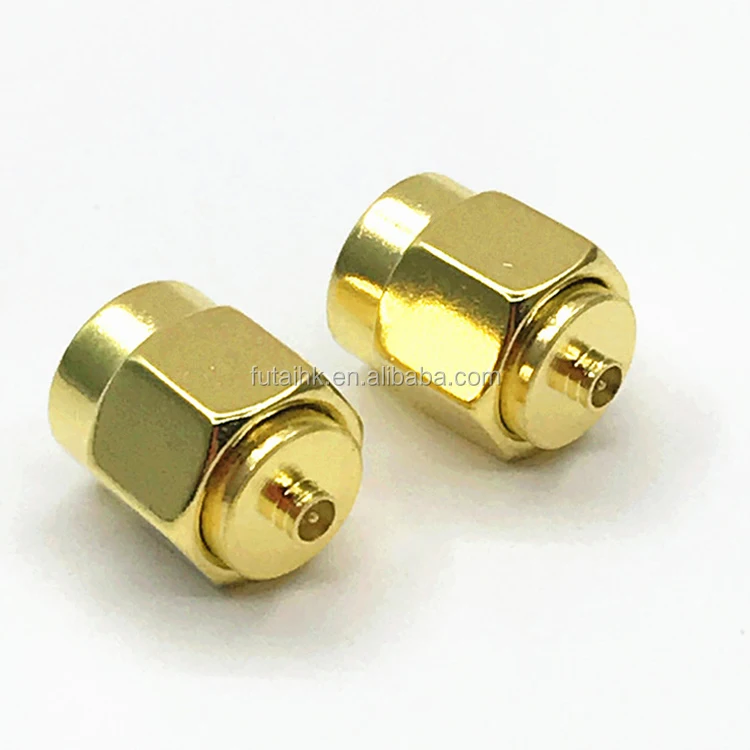

UFL MALE to SMA MALE adapter

FOB Reference Price:Get Latest Price
$0.90 - $0.99 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 Negotiable
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
Futai
Model Number:
SMA-J/IPEX-J-140G
Application:
RF
Type:
ADAPTER
Gender:
sma male to ipex male
Website:
www.futai8.com
connector type:
adapter
type:
rf coaxial connector
Sample:
welcome ask sample for testing
Supply Ability
Supply Ability:
8000000 Piece/Pieces per Week UFL to SMA adapter
Packaging & Delivery
Packaging Details
100pcs/bag or according to customer's requirement
Port
Foshan
Lead Time :
Quantity(Pieces) 1 - 100 >100
Est. Time(days) 7 To be negotiated


Specifications:

Model

SMA-J/IPEX-J-140G

Major Technical Characteristics

Type

SMA-J/IPEX-J-140G

Impedance

50Ω

Frequency Range

DC~12.4GHz(Semi-Rigid Cable DC-18GHz)

Center conductor retention force

≥0.28 N

Insertion Loss

≤0.15dB/6GHz

Voltage Standing Wave Ratio

Straight  Flexible Cable  ≤1.10+0.02f

Semi-Rigid Cable≤1.07+0.018f

Right angle Flexible Cable  ≤1.20+0.03f

          Semi-Rigid Cable≤1.17+0.02f

Durability(mating)

≥500(cycles)

Material & Plating

Body

Brass

Gold plated

Pin contact

Brass

Gold plated

Socket contact

Beryllium-copper Customized)

Gold plated

Resilient contact

Beryllium-copper

Gold plated

Insulator

PTFE

Crimp ferrule

Copper alloy

Nickel or gold plated

O-ring sealing

6146 silicone rubber

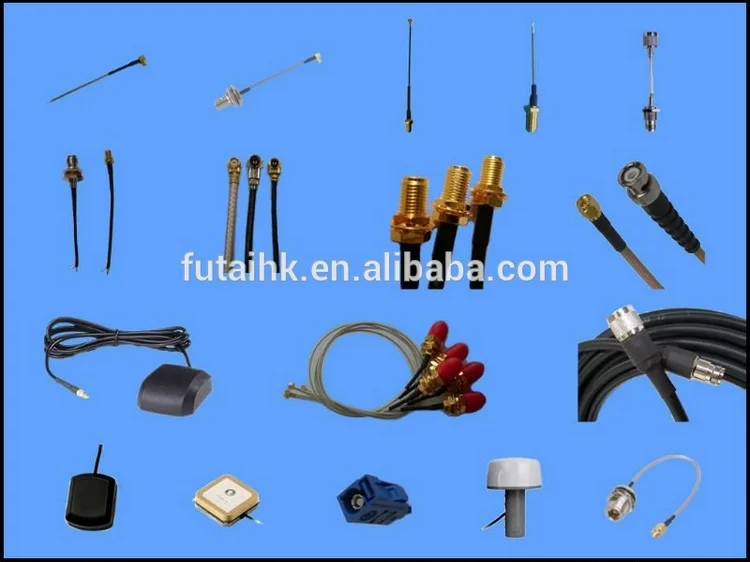

Our Company Other Products:
Futai HK Co.,Ltd is specialized in designing manufacturing and selling all kinds of RF connectors, Cable Assemblies and antennas.Our major products are three catagories:RF Connector , Cable Assembly and Antenna.

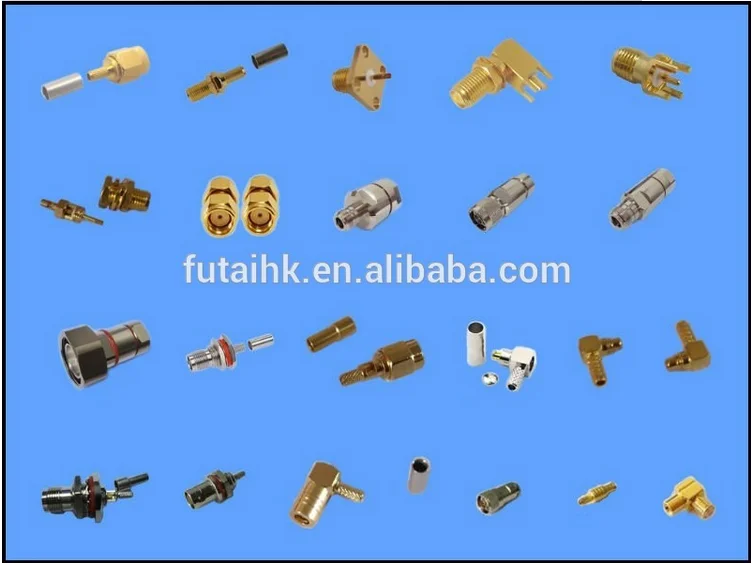

Connector are including RF Connectors(withSMA,SMB,SMC,SSMA,SSMB,SSMC,SMZ,7/16,MMCX, MCX, TNC, F, BNC ,N, and so on).
Cable assemblies are including interface cables (with U.FL, H.FL, IPEX, SMA, SMB, MCX, N, MMCX connector and so on ).
Antennas are including GPS antenna, WiFi antenna, GSM antenna, DVB-T antenna, GPS/GSM combination antenna, GPS engineer board.
